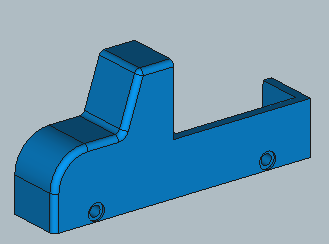

Construction of roundings or fillets of the frame

Questions to ask yourself before you start :

Which function to use ?

Fillet tool :
No sketch needed ...

In what plane ? how ?

No plane needed ;
By selecting the edges concerned.

camionnette_et5

Click on the steps of
the construction cycle

Select the edges

* Select the entitie(s) to dress up by left mouse click in the 3D window .

Notes :
The Ctrl key can be used to select multiple entities.
If you have forgotten any entities, you can add more in the settings window with the Add button.

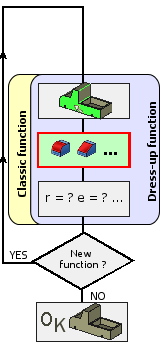

Select the feature

* Activate the desired dress up tool .

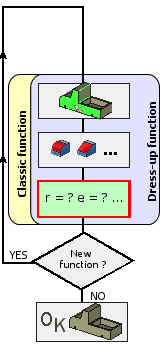

Define the parameters

* Fill in the transformation parameters
and Add more entities you have éventually forgotten :
